The Flame Gauge used for Horizontal Vertical Burner UL94

According to UL94,IEC60695-11 - 3, IEC60695-11 - 4, IEC60695-11=10, IEC60695-11 - 20 standard , during horizontal and vertical burning test ,should measure the flame height with flame gauge to check whether it meets with the standard requirements .

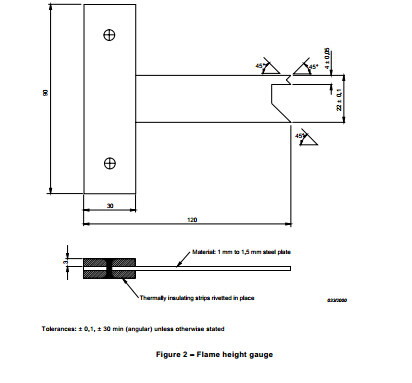

For 50W horizontal and vertical burning test , the flame height gauge is required:

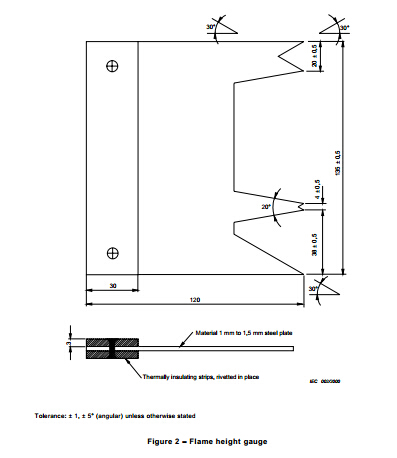

For 500W Horizontal vertical burning test ,the flame height gauge is required:

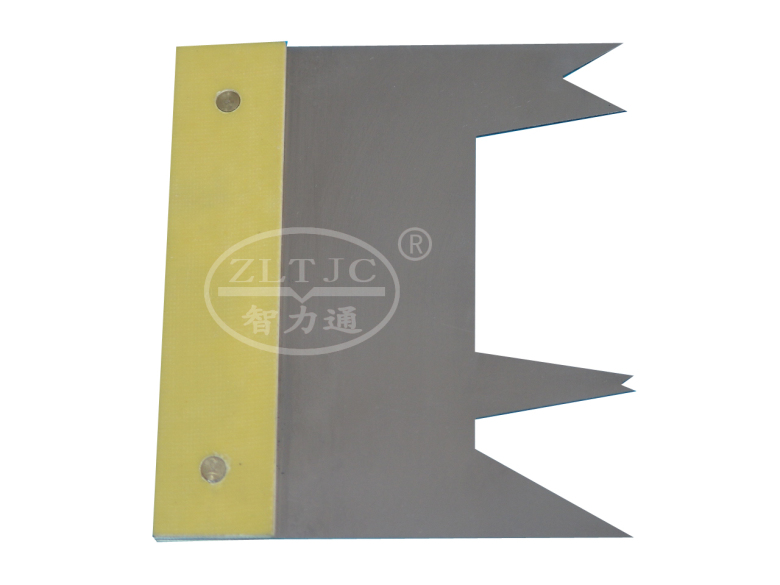

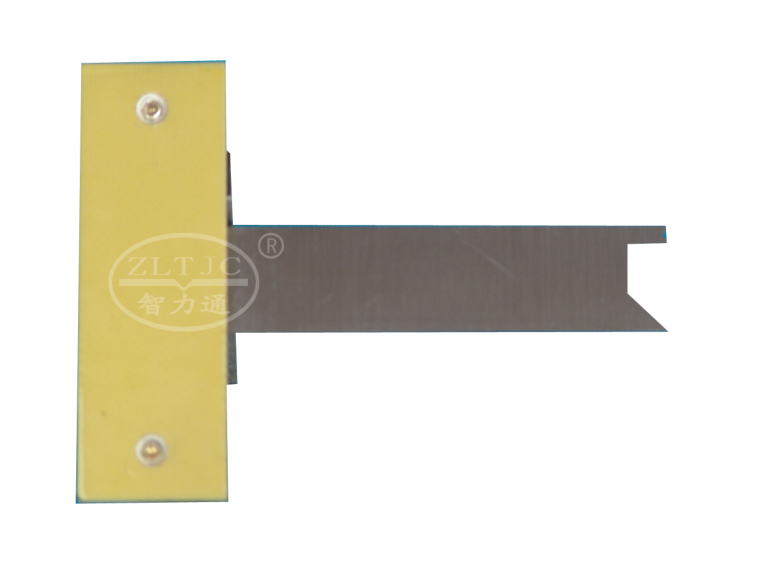

Following flame gauges are provided along with Horizontal Vertical Flame Burner ZLT-UL94 manufactured by Zhilitong Electromechanical Co. Ltd.
