Accessibility Probe for UL 1082 Testing Machine

• Product Origin : China
• Item NO. : ZLT-U01B
• Shipping Port : Guangzhou
• MOQ : 1
• Lead Time : 15 days
• Payment : T/T

Contact Now

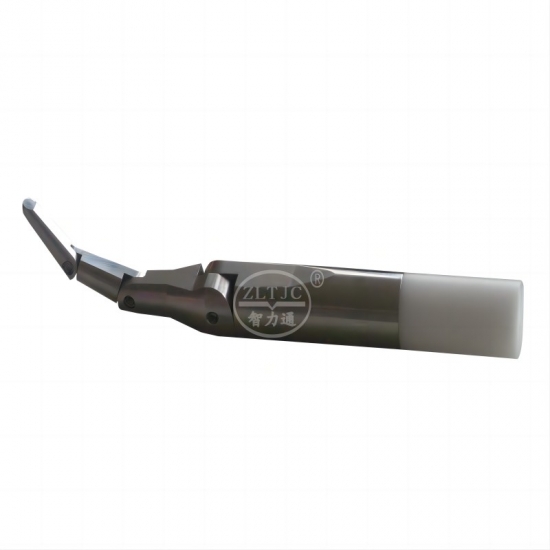

Articulate Probe

Model ZLT-U01B

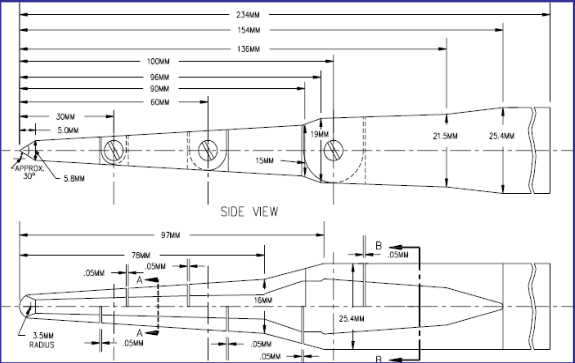

To test the opening in the enclosure that has a minor dimension of less than 1 inch (25.4mm) , conform to the CSA C22.2. UL1082 figure 7.2,Handle is nylon, tip is stainless steel.An opening in the enclosure that has a minor dimension of less than 1 inch (25.4 mm) is acceptable if a probe as illustrated in UL1082 figure 7.2, inserted through the opening, cannot be made to touch any uninsulated live part of film–coated wire that involves the risk of electric shock. The probe shall be applied in all possible articulated positions before, during, and after insertion.

Related Tags : Accessibility Probe   test probe    UL1082 testing machine
