IEC 60601-2-3 Figure 201.102 Test Probe

Model:ZLT-I02G

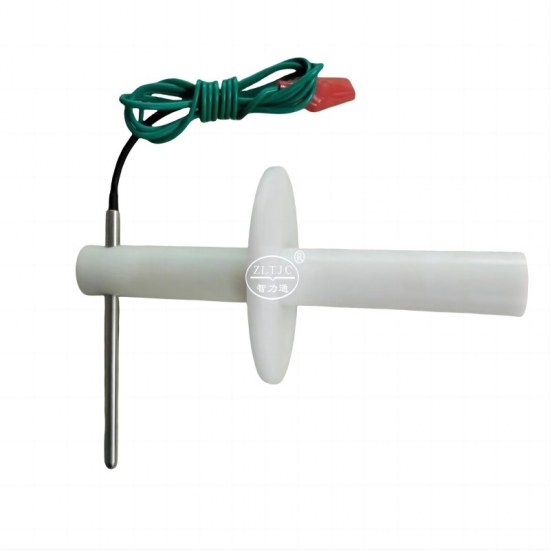

IEC 60601-2-3 Figure 201.102 Test Probe,to test the dielectric strength of SHORTWAVE THERAPR EQUIPMENT,conform to IEC60601-2-3 clause 201.8.8.3 and figure 201.102,have an metal probe of 8 mm diameter with a smooth and clean hemispherical end,the test handle is insulating rod.

The SHORT-WAVE THERAPY EQUIPMENT is Operated at RATED MAINS VOLTAGE and at the RATEDOUTPUT POWER Specified by the MANUFACTURER for the particular APPLICATOR under test.The output circuit is tuned to resonance, re-positioning the APPLICATOR as necessary.

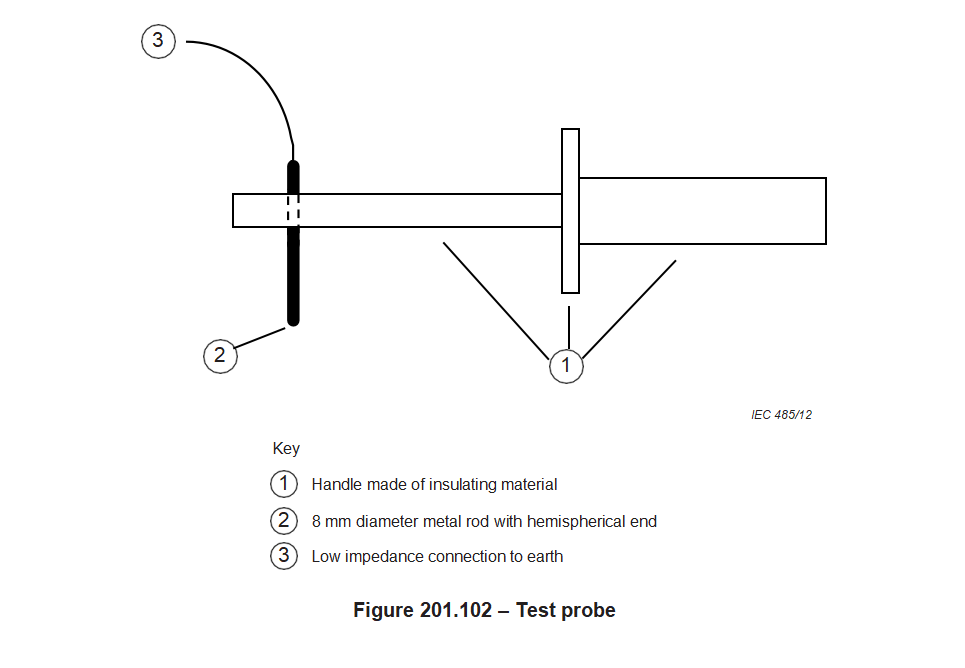

The test is performed using an earthed metal probe of 8 mm diameter with a smooth and clean hemispherical end, mounted into an insulating rod to form a test handle, as illustrated in IEC 60601-2-3 figure 201.102 . The hemispherical end of the probe shall be applied to the APPLICATOR and moved slowly but continuously over the surface of the APPLICATOR and the full length of its connecting cable and shall not be allowed to rest at any point. During the test evidence of flash-over or breakdown constitutes failure.
