Clamping Device Test Machine
Product details:Model ZLT-DSG2

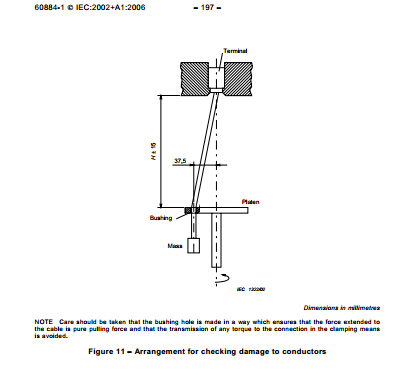

To test the reliability of clamping devices to hold flexible electrical conductors, according to IEC60884 1 figure 11 and clause 12.2.5, VDE0620, however for cross sectional areas up to 10mm2 only.
1 revolving platen with vertical axis of rotation, to move the conductor, clamped into the specimen,
1 accommodation for bushings, with angular contact ball bearing, built into the revolving platen with eccentricity 37,5mm, to guide the conductor clamped into the specimen, bore 15mm,
1 AC motor to drive the revolving platen at 10±2rpm,
1 hand vice to fix the specimen, height(H) adjustable to 260mm-280mm-300mm-320mm,with interchangeable jaws,
4 collar bushings with bore hole diameter 6,5mm-9,5mm-12,7mm-14,3mm, to be inserted into the accommodation of the revolving platen,
1 set of weight pieces, mass 300g-400g-700g-900g-1400g-2000g, with clamping device, to be suspended from the testing conductor
1 circuit continuity tester to monitor the clamping point, to stop the timer and to switch off the whole machine,
1 rack mounted unit with control panel, with main switch, timer to preselect the desired test duration, push-button for inching, start and stop push-buttons as well as switch to activate monitoring by the circuit continuity tester.
Power supply: 220V 50Hz, other voltages request
