8 mm Funnel Test Apparatus for IEC 60335-2-9 Testing Machine

• Product Origin : China
• Item NO. : ZLT-JL6
• Shipping Port : Guangzhou
• MOQ : 1
• Lead Time : 15 days
• Payment : T/T

Contact Now

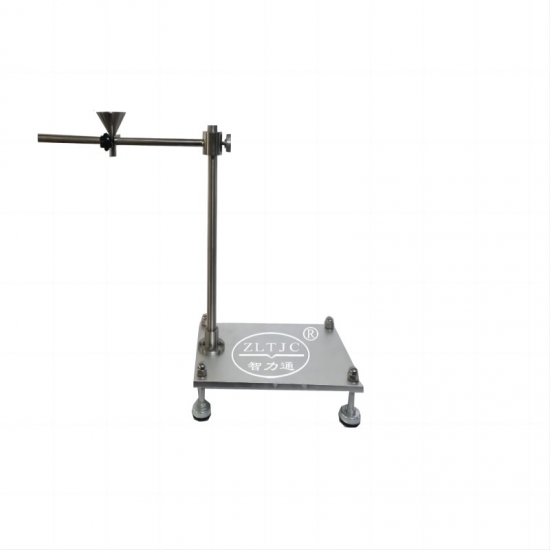

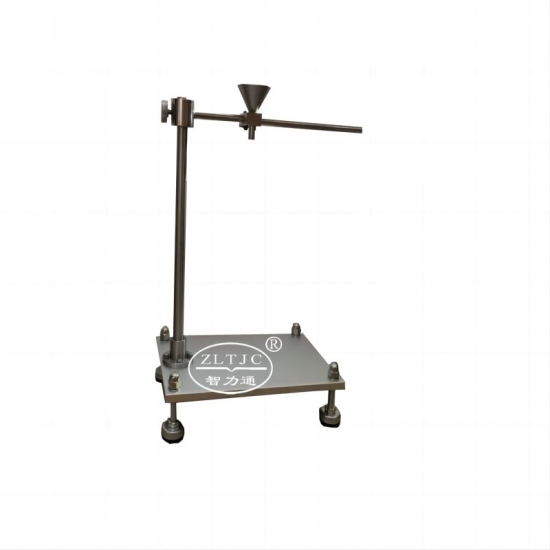

8mm Funnel Test Apparatus

Product produc details :Model: ZLT-JL6

8 mm Funnel Test Apparatus,to test moisture resistance for hotplates and cookers, conform to IEC60335-2-9 clause 15.2,  for hotplates having ventilating openings in the heated surface,  0.2 L of the saline solution is poured steadily through the funnel onto the ventilating openings.

Test Outfit：

Outlet diameter of funnel： 8mm

 Funnel Height: 200mm above the heating surface, adjustable

Supporting Fixtures .

Related Tags : 8 mm funnel test apparatus   IEC 60335-2-9 Testing Machine   IEC 60335-2-9 clause 15.2 test device
