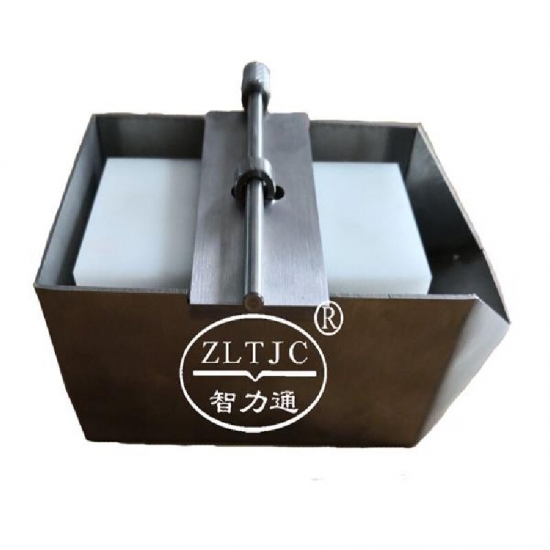

Spillage Test Apparatus
Product details:Model ZLT-JL5
Spillage Test Apparatus,for test moisture resistance of containers onto the inside walls of the cabinet or compartment,or onto the top of the cabinet,according to IEC60335-2-24 figure 101,IEC60335-2-89 figure 101.
Standard Outfit:

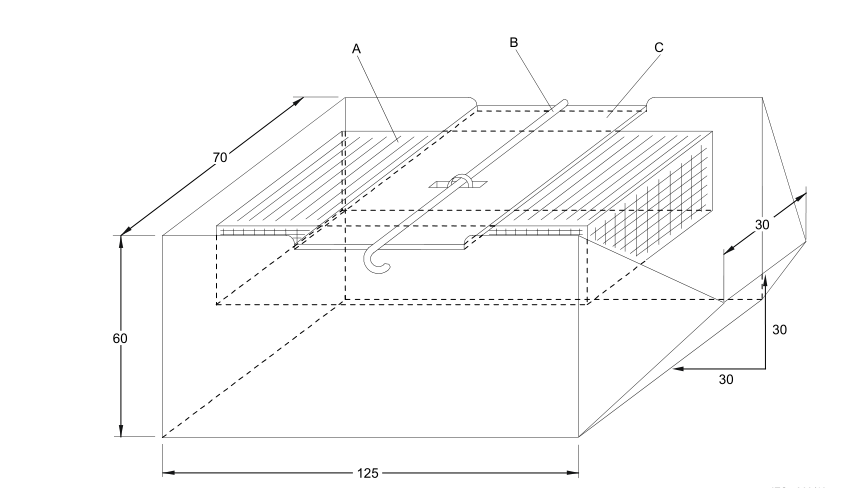

1 displacement block,has a volume of 140 ml±5 ml and a mass of 200g±10g.
1 vessel, its dimensions are 125*60*70mm.
