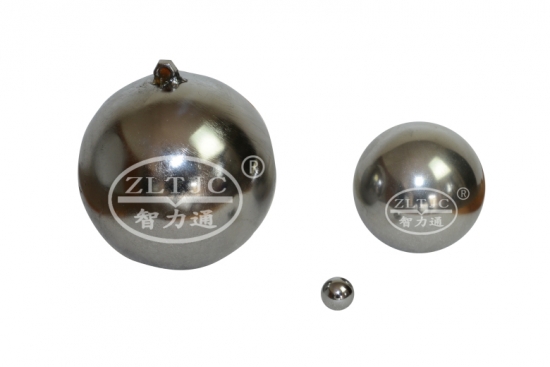

Impact Strength Steel Ball
Product details:
To determine the mechanical strength and the impact strength by pendulum test resp, by drop test. Material: steel ball hardened.
Model
ZLT-GQ1
ZLT-GQ1A
ZLT-GQ2
ZLT-GQ3
ZLT-GQ4
Diameter
50.8±0.2mm
50.8±0.2mm
50±0.2mm
38.1±1mm
63.5±5mm
Mass
535±25g, without the thread bore
535±25g with the thread bore M4
500±25g with the thread bore M4
226±10g
1040±25g
Conform to
UL
UL
IEC 60335, IEC 60950
