Pressure Ball Tester for IEC 60335-2-40

• Product Origin : China
• Item NO. : ZLT-QY1A
• Shipping Port : Guangzhou
• MOQ : 1
• Lead Time : In 25 Working Days
• Payment : T/T , D/P

Contact Now

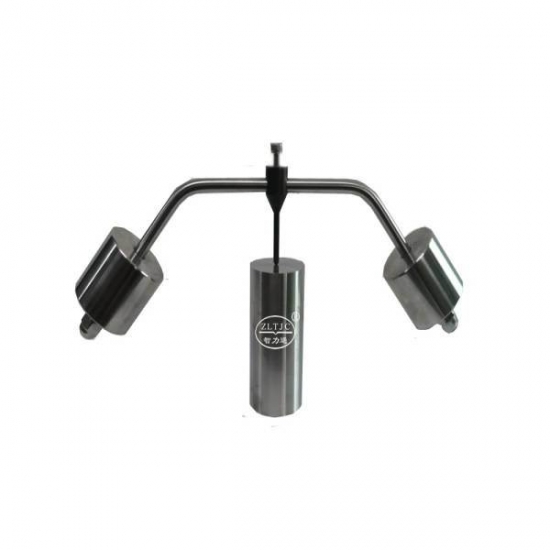

Ball Pressure Test Device

Product details: Model ZLT-QY1A.

To determine the dimensional stability of parts consisting of non-ceramic, non-metallic insulating materials when exposed to higher temperatures up to maximum 250° C.

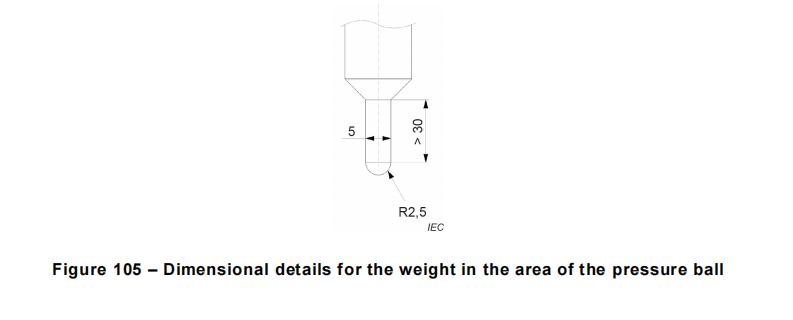

According to IEC60695-10-2, IEC60335-2-40 figure 105 and clause 30.101, etc.

Standard Outfit:

1 pressure ball, diameter 5 mm (ball for roller bearings according to ISO 3290), >30mm length,

1 ball holder, with bore and clamping screw for the bow,

1 bow, to hold the weights,

2 weights with fastening means.

All stainless steel, ball is hardened steel, total mass 2040± 5 g to produce the pressing force of 20 N, weights carefully tared, test stand is of 100 mm high, diameter 50 mm, with a hole of diameter 2 mm.
