1.4J Impact Hammer for CSA C22.2 Testing Machine

• Product Origin : China
• Item NO. : ZLT-CJ1A
• Shipping Port : Guangzhou
• MOQ : 1
• Lead Time : 10 days
• Payment : T/T

Contact Now

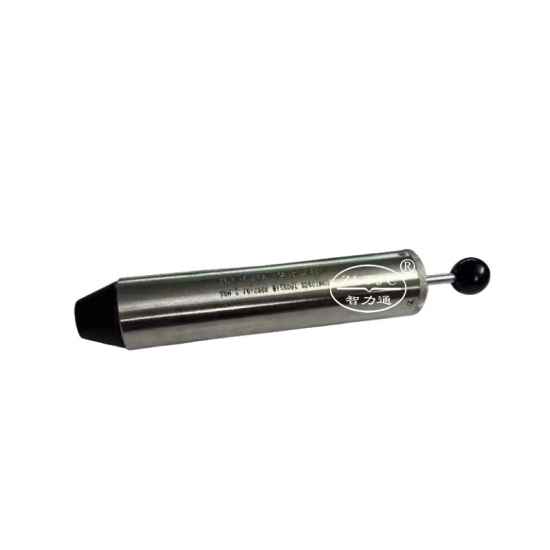

1.4J Impact Hammer.

Product details:Model ZLT-CJ1A.

1,4J Impact Hammer,to test to the brush cap or in the area of the brush cap,according to CSA C22.2 No 71.2 clause 7.10.2&7.10.3.

All tools shall withstand a single impact of 1.4J,applied by a 6.35 mm diameter steel sphere,to the brush cap or in the area of the brush cap of electric bench tools.

The actuating mechanism of switches and controls shall be subjected to three impacts of 1.4J,each from a 6.35 mm diameter steel sphere.

●Single impact energy:1.4J,applied by a 6.35mm diameter steel sphere.

Related Tags : 1.4J Impact Hammer    CSA C 22.2 Impact Hammer    CSA Testing Mahine
