Current-Carrying Abrasion Resistance Testing Apparatus

• Product Origin : China
• Item NO. : ZLT-AR
• Shipping Port : Guangzhou
• MOQ : 1
• Lead Time : 30 days
• Payment : T/T

Contact Now

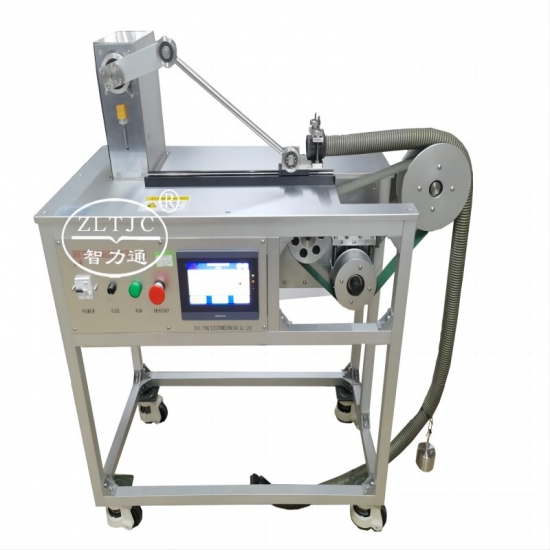

Current-Carrying Abrasion Resistance Testing Apparatus.

Product details:Model ZLT-AR

For testing the abrasion resistance of current-carrying hoses,according to IEC60335-2-2 figure 101 and clause 21.101.

Standard Outfit:

1 mass of 1 kg,is suspended from the other end of the hose,

1 motor with reduction and swiveling gear,for the crank rotates at 30 r/min resulting in the end of the hose moving horizontally backwards and forwards over a distance of 300 mm,

1 sets of roller,diameter 120mm,moves at speed of 0,1m/min,

1 abrasive cloth belt,is corundum grit size P100,

1 frame,for install the specimen,

1 power supply to specimen,

Power supply:AC220V 50Hz ,other voltages and frequencies on request,control by PLC.

Related Tags : Current-Carrying Abrasion Resistance Testing Apparatus   IEC 60335-2-2 figure 101 tester   IEC 60335-2-2 Testing Machine
