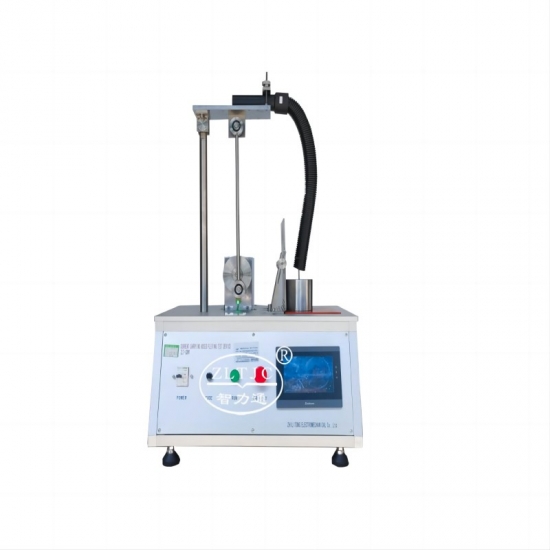

Current-Carrying Hoses Flexing Test Machine
Product details:Model ZLT-CDW1
To test current-carrying hoses flexing,conform to IEC60335-2-2 clause 21.102 and figure 102.
Technical Parameters:
Power Supply: AC 220V 50Hz;
Crank Speed: （10±1）r/min (set on PLC touchscreen);
Distance between the fixing point and the support point of the test specimen: (300±5) mm;
Angular position of the mechanical arm with respect to the horizontal: 40°±1°;
Inclination angle of the inclined plane: 3°;
Number of Test Cycles: Set on the touchscreen;
Load Weight: 5KG;
Operation & Control Method: Use of PLC touchscreen.
