Water Vapor Evaporation Test Device

Water evaporation and for accumulation of frost test device

Product details:Model ZLT-WF

To accumulation of frost，according to IEC60335-2-24 annex BB.1 & BB.2 and clause 11.102.

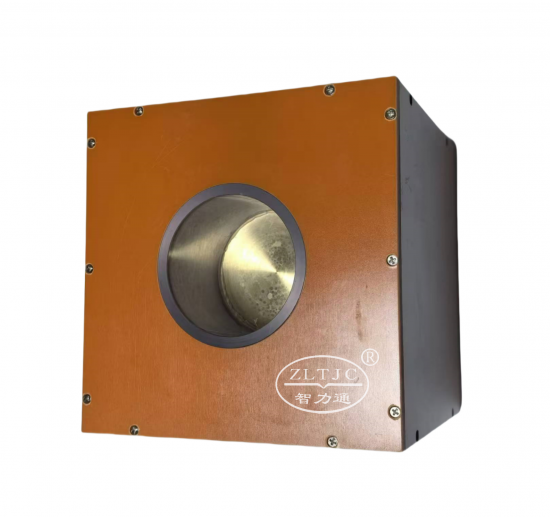

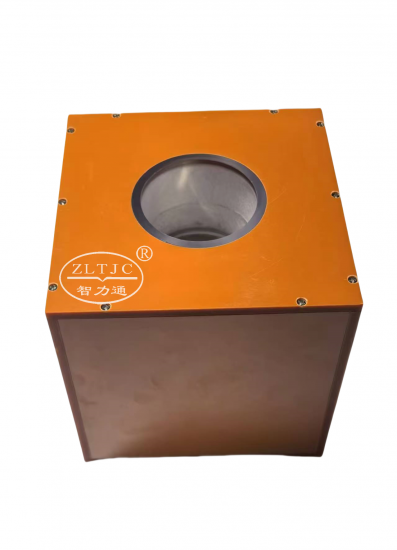

A convenient form of the apparatus would comprise a block enclosure of thermally insulating material having a vertical hole at its centre containing a lamp mounted on a bottom plug directly below an evaporating dish with a high thermal conductivity base and low thermal conductivity walls.

Standard outfit:

1 Water vapor evaporation device,accordance with IEC60335-2-24 figure BB.1.

1 Lamp in the water vapor evaporation device.

1 power adapter of 4W.
