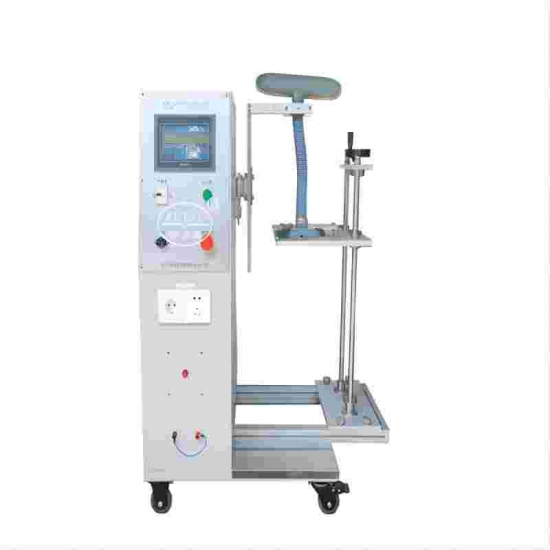

IEC 60598 Luminaries Adjusting Devices Tester

• Product Origin : China
• Item NO. : zLT-JDW6
• Shipping Port : Guangzhou
• MOQ : 1
• Lead Time : 30 days
• Payment : T/T

Contact Now

Luminaries Adjusting Devices Test Equipment.

Product details:Model ZLT-JDW6

To test the adjusting devices of luminaries,accordance with IEC 60598 clause 4.14.3.

Adjusting devices and means of adjustment,for example joints,hoisting devices,adjusting brackets or telescopic tubes,shall be so constructed that cords or cables are not pressed,clamped,damaged or twisted along the longitudinal axis by more than 360⁰ during operation.

Standard Outfit:

1 servo motor with reduction and swiveling gear,

1 output shaft,swiveling angle 0-180⁰ on either side of the vertical,

1 speed adjustment,for 0-10 time/min,

1 frame,for install the specimen,

1 power supply to specimen,

Power supply:AC220V 50Hz 1.5kw,other voltages and frequencies on request,control by PLC.

Related Tags : IEC 60598 Luminaries Adjusting Devices Tester   IEC 60598 clause 4.14.3 tester   IEC 60598 Testing Machine
