Food Warmers Flexing Test Equipment

• Product Origin : China
• Item NO. : ZLT-FW1
• Shipping Port : Guangzhou
• MOQ : 1
• Lead Time : 30 days
• Payment : T/T

Contact Now

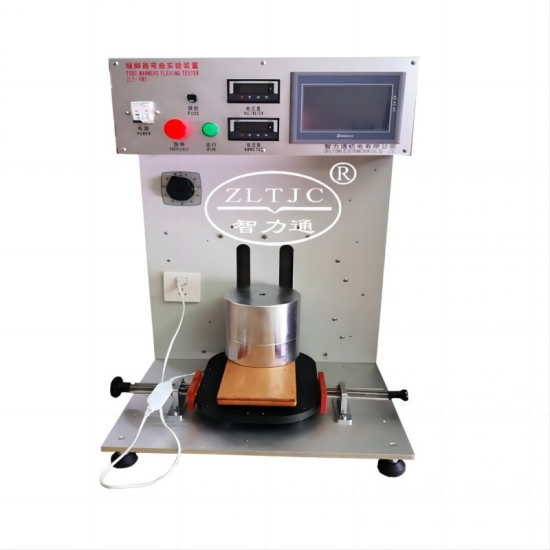

Foot warmers flexing test equipment

Product details :Model ZLT-FW1

To measure mechanical strength of the foot warmers, accordance with IEC 60335-2-81 clause 21.101 and figure 101.

Standard Outfit:

1 plywood board, having dimensions approximately 300mm×150mm×20mm with rounded edges,

1 mass of 30 kg, is placed on the board,

1 gear motor, to drive the lifting device, to drop freely from a height of 200mm above the base, the test is carried out 1000 times at a rate of six times per minute.

1 control circuit of 0.5 KVA power output, power supply to specimen,

1 control system by PLC.

●With voltmeter AC 250 V, current meter, fuses and socket-outlet for the specimen, for connection to AC 220V 50Hz, other voltages on request.
