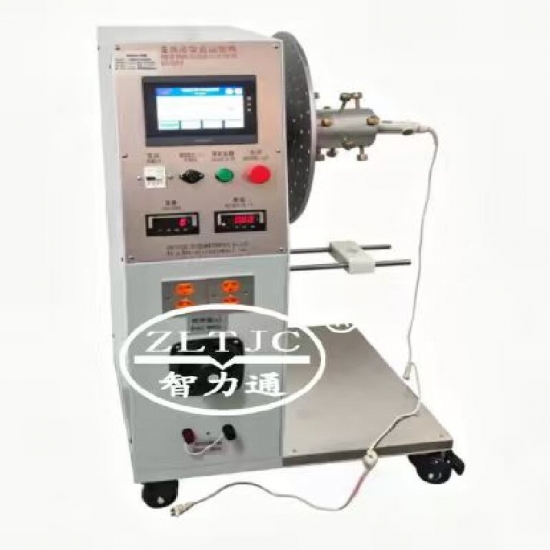

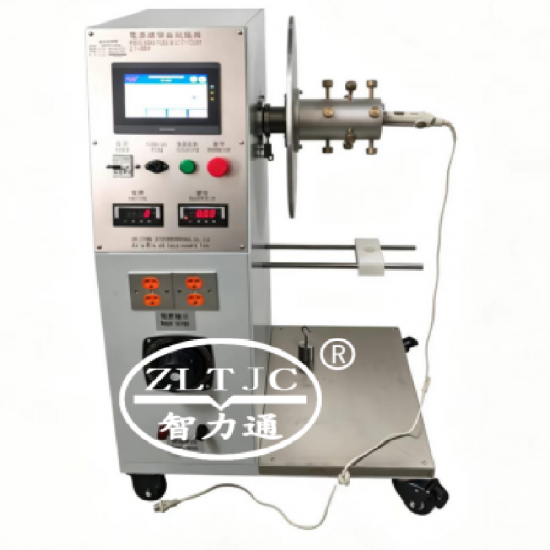

IEC 60335 Power Cord Flexibility Tester

Product details: Model ZLT-JDW1P.

For continuous bending tests by swivelling movements to check supply cord where it enters the appliance, in accordance with IEC60335-1 clause 25.14 figure 8 and IEC60745-1,IEC60335-2-23 clause 11.101.

For IEC60335-1 clause 25.14,the part of the appliance that includes the inlet opening is fixed to the oscillating member so that, when the supply cord is at the middle of its travel, the axis of the cord where it enters the cord guard or inlet is vertical and passes through the axis of oscillation. The major axis of the section of flat cords shall be parallel to the axis of oscillation.

The cord is loaded so that the force applied is

– 10 N, for cords having a nominal cross-sectional area exceeding 0,75 mm²;

– 5 N, for other cords.

The distance X, as shown in IEC60335 figure 8, between the axis of oscillation and the point where the cord or cord guard enters the appliance, is adjusted so that when the oscillating member moves over its full range, the cord and load make the minimum lateral movement.

The oscillating member is moved through an angle of 90° (45° on either side of the vertical), the number of flexings for type Z attachments being 20 000 and for other attachments 10 000. The rate of flexing is 60 per minute.

For IEC60335-2-23 clause 11.101,appliances incorporating a swivel connection are positioned with their major axis horizontal,the supply cord hanging vertically,a pull force of 1N is spplied to the supply cord,the appliance is supplied at rated voltage,the current being 1,25 times the rated current,the appliance is rotated about its major axis at a rate of approximately 50 rev/min,the direction of rotation being reversed every 20 revolutions,the test is carried out for 1500 revolutions.

Standard Outfit:

1 servo motor with reduction and swiveling gear,

1 output shaft, swiveling angle 45°,60°or 90°on either side of the vertical,

1 sets of weights, 1N-5N-10N,

1 speed adjustment, Angle scope: 60 times/min for left-right 45° speed, 30 times/min  for left-right 60° speed and 60 times/min  for left-right 90° speed; if 180⁰ is needed, the speed should be 6 rpm; with a speed of 50 RPM and will rotate in opposite direction for every 20 for IEC60335-2-23 controlled on PLC on human interface.,

1 control unit with 6 digit predetermining counter to switch off the drive, and records the number of swiveling when the sample open circuit,

1 control circuit of 3 KVA power output, power supply to specimen,

Power Supply: A.C.220V 50Hz, other voltages and frequencies on request.
