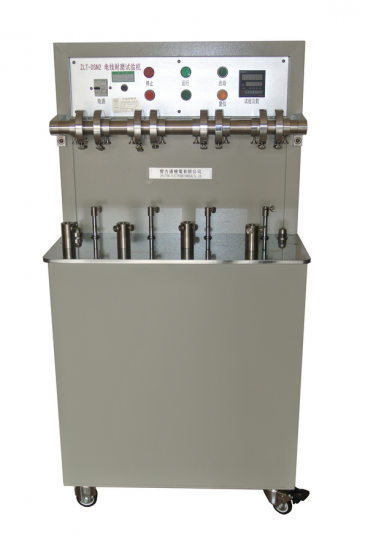

Completed flexible Cables Wear Resistance Tester
Product details:Model ZLT-DSN2

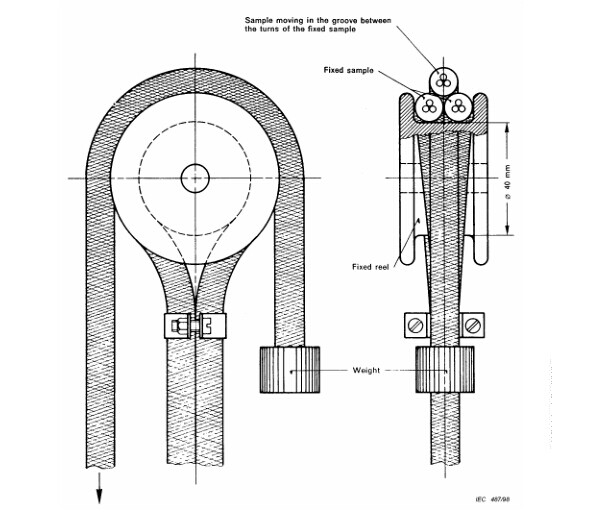

To determine the mechanical strength of completed flexible cables,according to IEC60245-2 clause 3.3 and figure 3.
Standard outfit:
4 sets of fixed reel having a diameter of 40 mm at the bottom of the groove.
4 weight,500 g, for 4 samples.
1 output shaft, the end of sample shall be moved up and down over a distance of 0,10 m, at a rate of about 40 single strokes per minute.
Power supply:A.C.220V 50Hz, other voltages and frequencies on request.
