Induction Wok Hotplates Mechanical Strength Test Device

• Product Origin : China
• Item NO. : ZLT-SZ3
• Shipping Port : Guangzhou
• MOQ : 1
• Lead Time : 20 days
• Payment : T/T

Contact Now

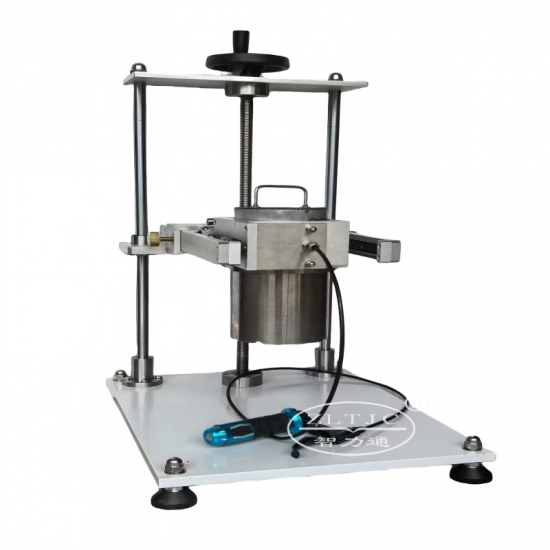

Induction Wok Hotplates Mechanical Strength Test Device.

Product Details:Model ZLT-SZ3

To test the mechanical strength of the portable cooking appliances^,s induction wok hotplates, according to IEC60335-2-9 clause 21.101 and IEC 60335-2-6 clause 21.102.

The hotplate is operated at rated power input with its control adjusted to the highest setting,induction hotplates are operated as specified in IEC60335-2-9 clause 11,when steady conditions are established,the hotplate is switched off and a vessel with its base horizontal is dripped from a height of 150 mm onto the cooking zone.

Standard Outfit:

1 vessel,has a aluminium base,with a diameter of 120 mm±10 mm,weight of (0.5±0.01)kgs.

1 Impact support,drop height of 150 mm.

1 induction wok hotplates support base.

Related Tags : Induction Wok Hotplates Mechanical Strength Test Device   Mechanical Strength Tester   IEC 60335-2-9 Testing Machine
