Products
Bending fatigue Tester
- China
- ZLT-FT2
- Guangzhou
- White
- 1
- In the 30 days
- Ex-work, FOB, CFR
- $8000

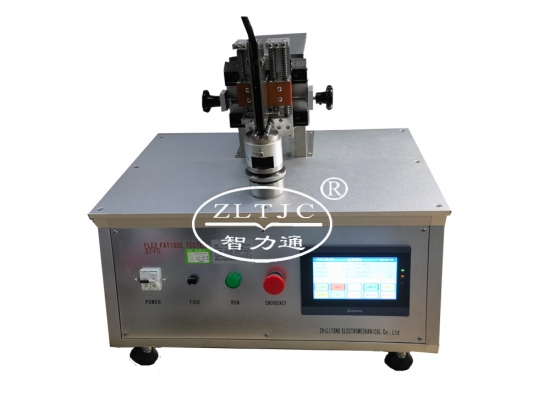

Product details:Model ZLT-FT2

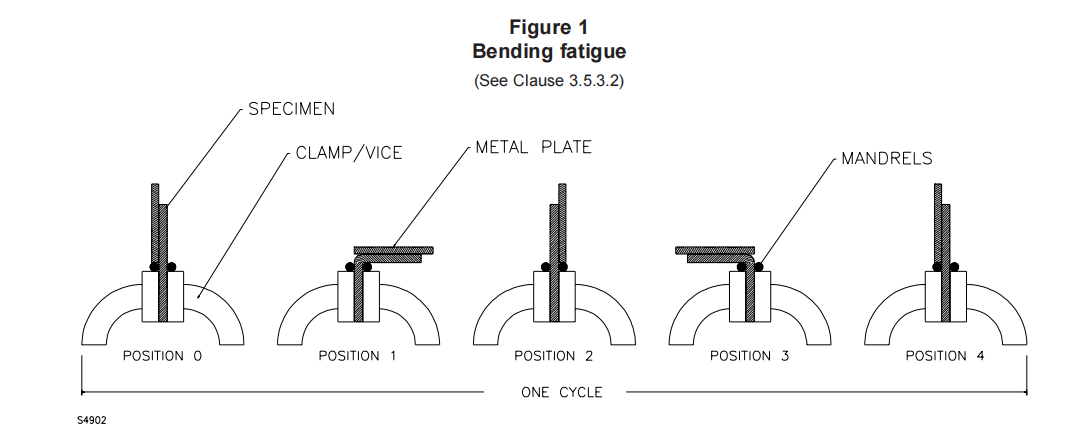

This test determines the resistance to bending fatigue of a solid conductor,accordance with UL2556 clause 3.5.3 and figure 1.
Standard Outfit:
1 clamping device;
1 metal plate for bending the specimen;
2 metal mandrels each having a diameter equal to that of the specimen +0,-10%,fixed to the clamping device;
1 drive mode by PLC controlling system;
Power supply:AC220V50Hz or other voltages request.
