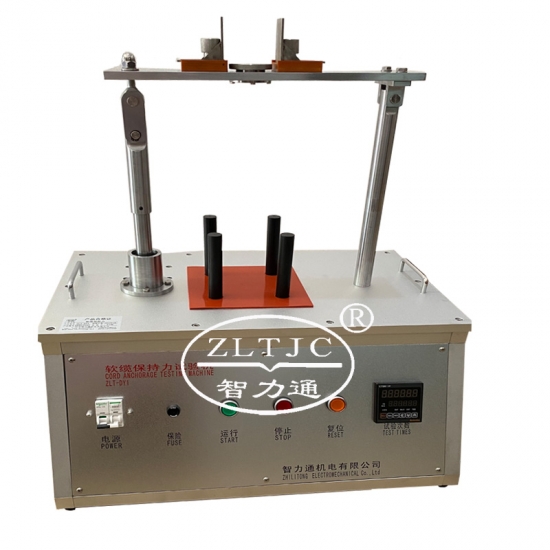

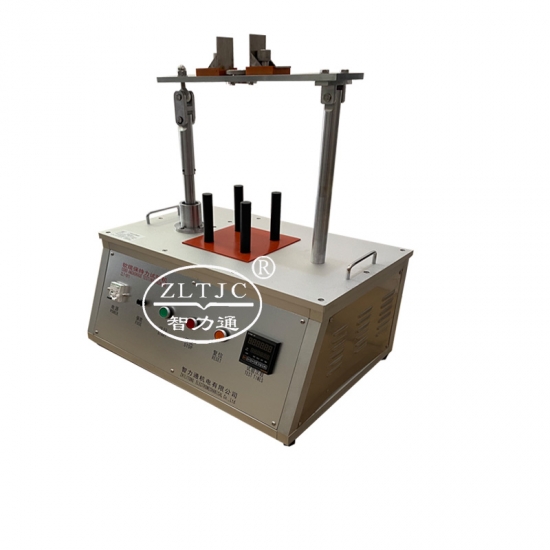

Cord Anchorage Testing Apparatus
Product details:Model ZLT-DY2
For pull testing to EV plugs and vehicle connectors provided with a flexible cable,in according to IEC 62196 figure 17 & clause 25.3,IEC60309 figure 6 & table 11.
Standard Outfit:
1 basic frame,with housing,
1 eccentric disc,diameter 125mm,eccentricity 30 mm,
1 A.C. geared motor with additional gear reduction to approx.60 rpm,
1 lever for the specimen,with track wheel,
1 clamping mechanism with various gripping dies to match the cord size and shape,
1 set of weights for loads 160*1-240N*2-10N*1-100N*2,to realized pulling force 160N-200N-240N-250N-300N-500N-600N
1 electrical predetermining counter,four-digit,resettable,to indicate the number of strokes,
For connection to A.C.220V50Hz,other voltages or frequencies on request.
