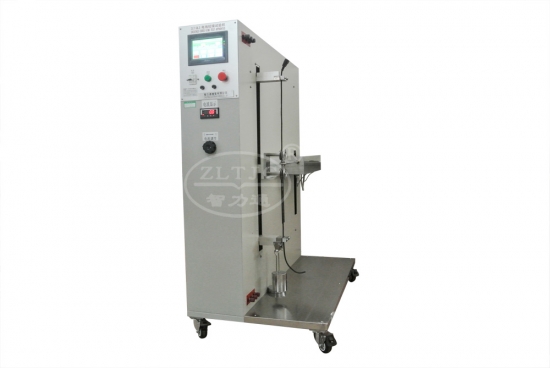

Completed Flexible Cables Kink Test Apparatus
Product detail:Model ZLt-QL3

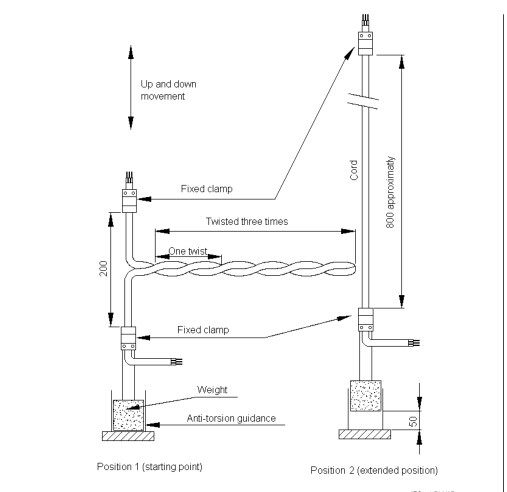

To determine the mechanical strength of two and three core sheathed cord,with a conductor cross-sectional area up to and including 1,5 mm2,according to IEC60245-2 clause 3.6 and figure 7.
Standard outfit:
4 weights,50N,70N,and 100N.
1 test current circuit for 6A,10A,and 16A.
1 distance pieces 50 mm.
1 Drive mode by PLC controlling system.
1 speed adjustment,for the test speed of nine complete cycles per minute,the distance of travel for each movement(up or down) shall be 650 mm.
Power supply:A.C.220V 50Hz,other voltages and frequencies on request.
