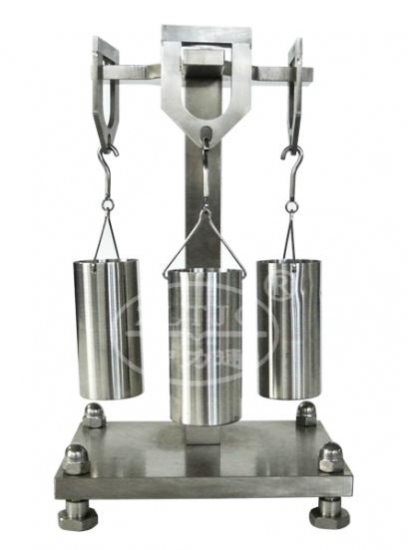

Indentation Device for Insulations and Sheaths of IEC60811 Cables
Product details: Model ZLT-HP2
For pressure tests on insulating and sheathing as well as on cords and cables with diameters up to 20 mm at temperatures to 200ºC with loads, according to IEC60811-3-1 figure 1,IEC 60811-508 figure 1.
Standard outfit:
1 base plate,for simultaneous testing of three specimen,
3 stand,with support,with plane sample bearing surface,
3 small buckets,for loading,

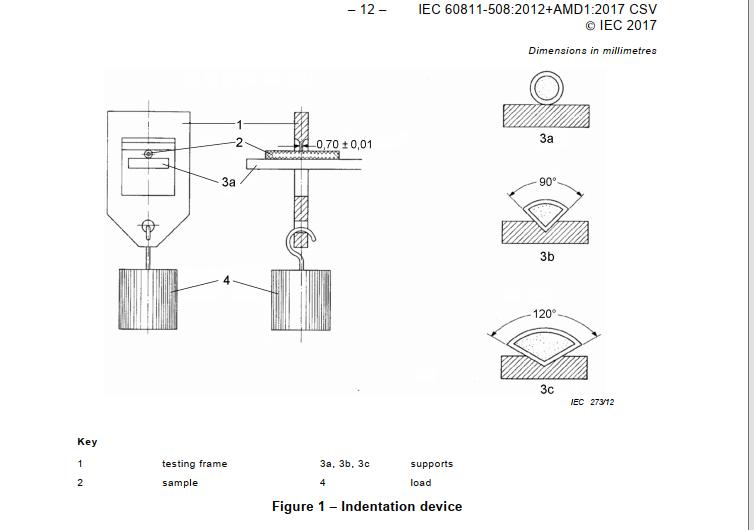

3 testing frame, hardened and ground,0,7 +0,01mm thick,(see IEC60811-508 figure 1 3a,3b,3c).
